Carbon boom
Just like the carbon masts, the carbon booms are also created in our production facility in southern Germany - design and production from a single source. The main features are: Low weight, fittings with attention to detail and exclusive design.
Laminate structure and reinforcements
Our manufacturing technology enables a special structure of the laminate. The fiber course can be implemented exactly according to the calculations. The material used - high-quality fibers from renowned manufacturers - guarantees the qualitatively convincing result. CUL-Masten attaches particular importance to high tensile strength and elongation at break. The combination of different fibers is possible and can even further improve the result. CUL-Masten uses a high quality epoxy resin, which is also used in aviation, with GL certified hardener, which has a temperature resistance of well over 100° C. The carbon fiber main boom is reinforced in the area of the downhaul and the mainsheet, as well as at the reefing points, in order to absorb the corresponding forces.
Luff flying or guided in the groove
A particular advantage of the CUL Carbon large beams is the possibility of supplying them with an integrated lower luff groove. This is incorporated directly into the laminate, saves weight and increases the strength in the bending axis. Alternatively, the booms can also be supplied without or with a closed luff groove in order to use a flying luff.
Details
Details from the Lümmel fitting to the roller box

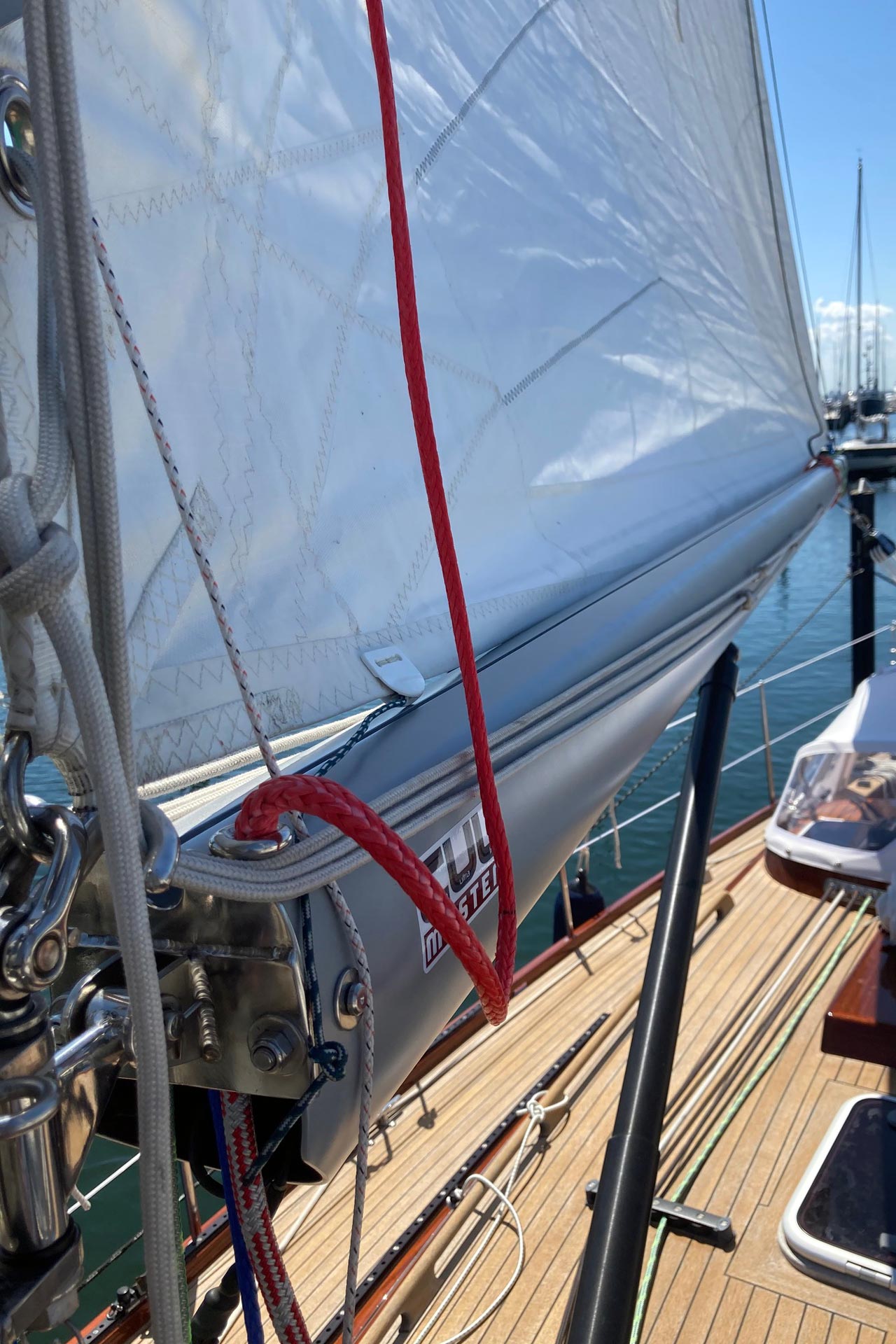

Boom neck fitting
- with up to 4 halyards for foot luff and reefs
- easy running and resilient drop discs
- easy to dismantle and therefore easy maintenance of the lines
- stable and maximum load bearing
- stainless steel
- different variations possible depending on customer requirements

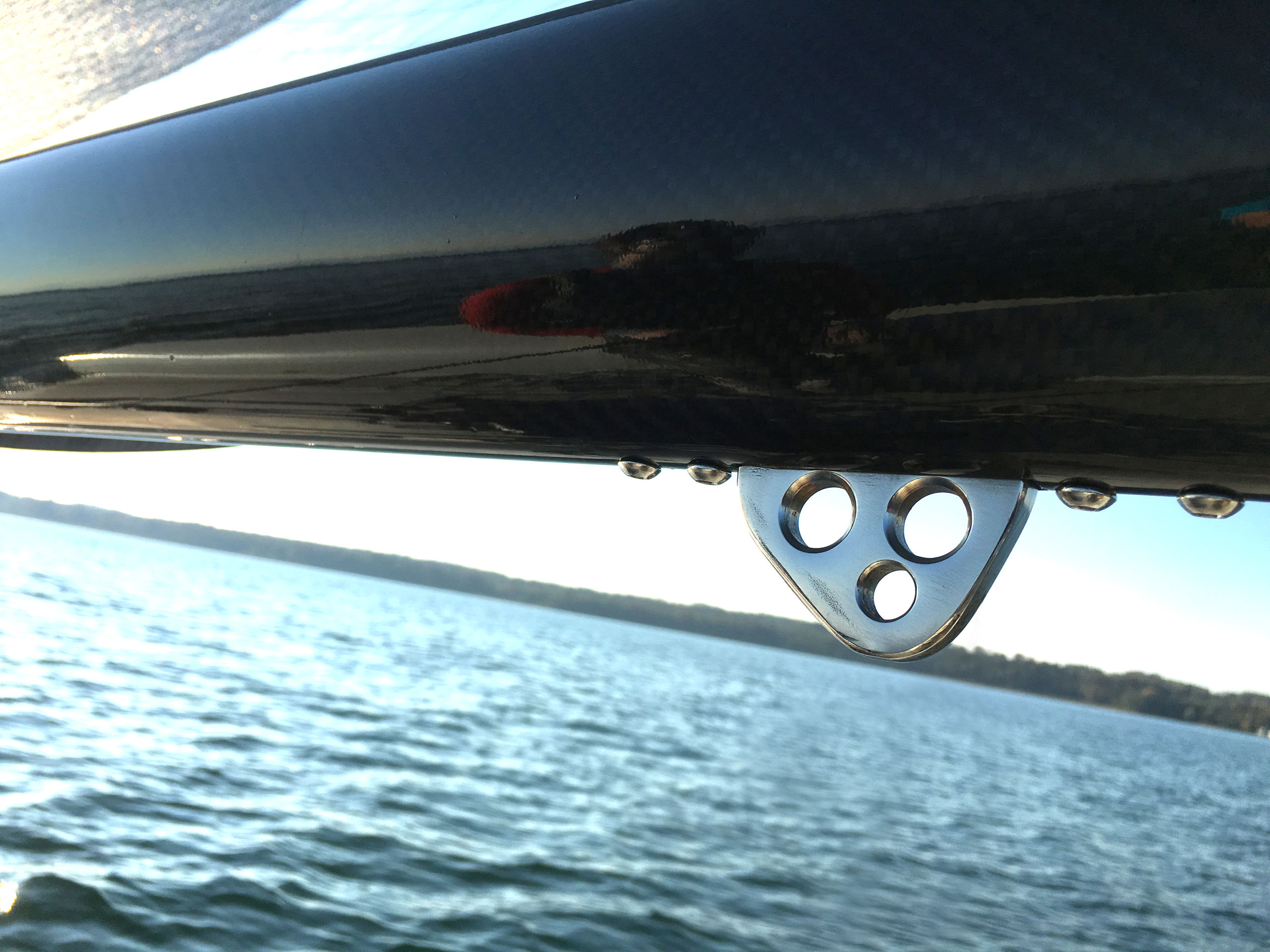

Kicker / Downhaul fitting
- stainless steel or carbon
- suitable for CUL-Power-Kicker or other pusher systems
- different variations possible depending on customer requirements

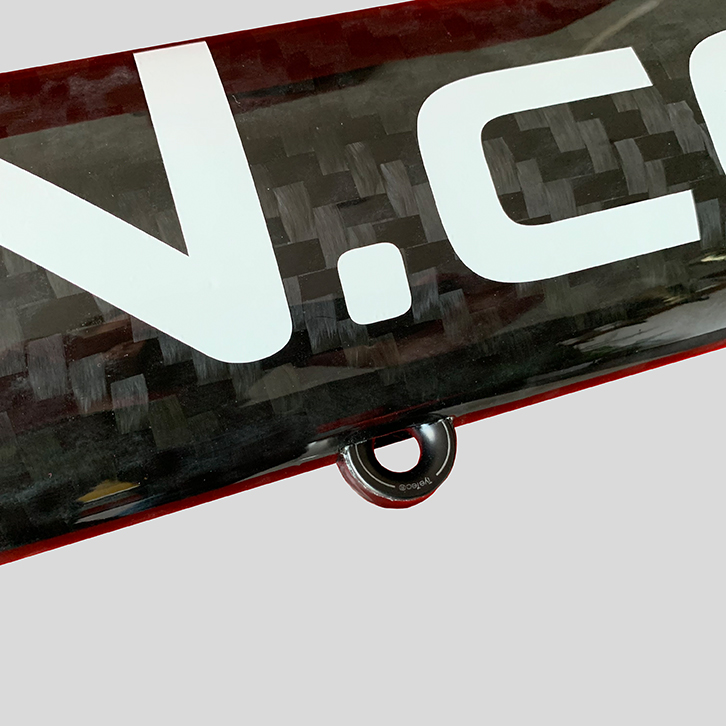

Strap for mainsheet
- simply
- light
- durable
- different variations possible depending on customer requirements
Velcro strap for clew
- simply
- light

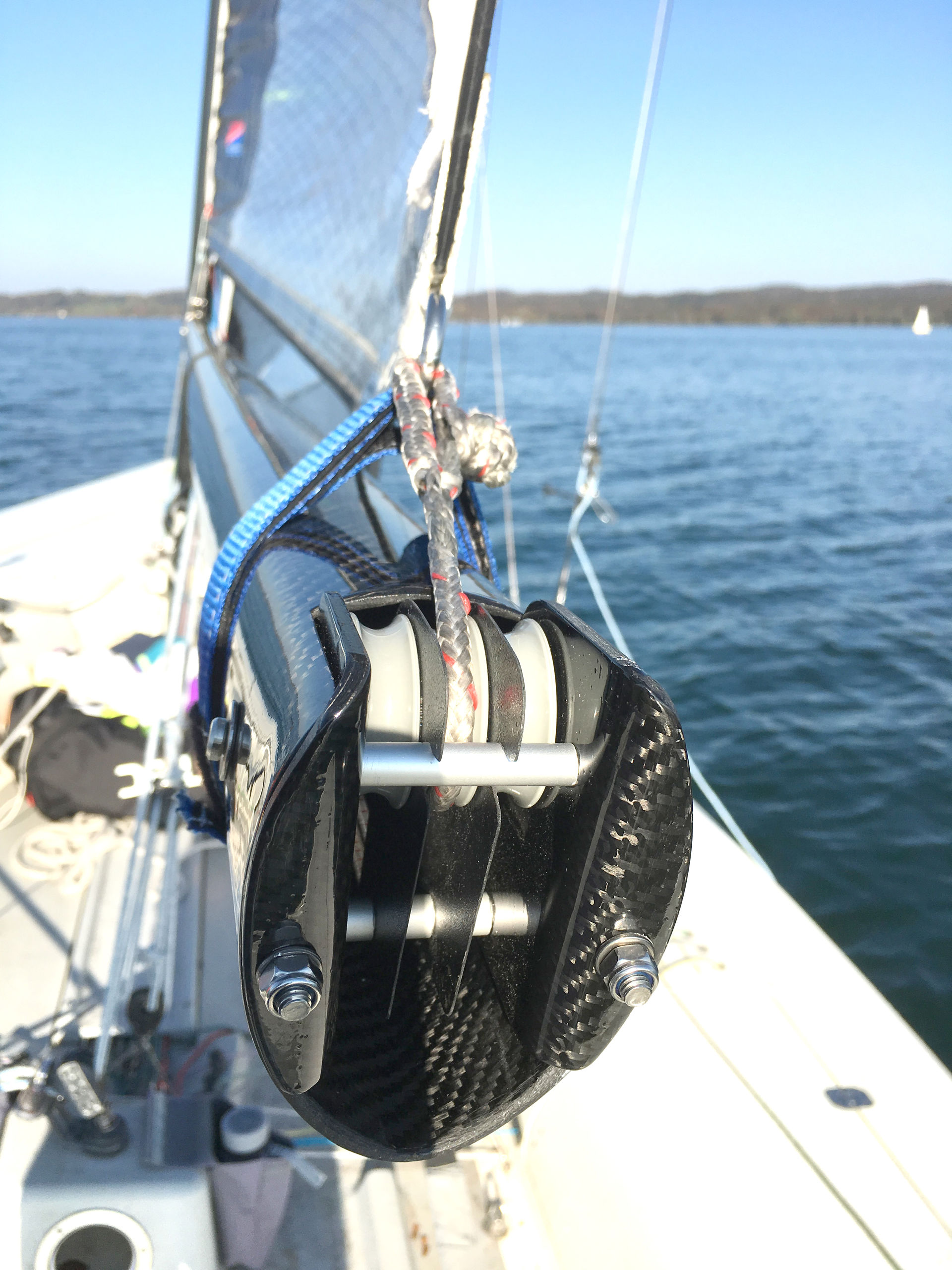

Roller box with up to 3 halyards
- completely made of carbon fiber therefore very light
- with 3 halyards for foot and 2 reefs
- easy running and resilient drop discs
- easy to dismantle and therefore easy maintenance of the lines
- eye for dirkleine
- perfect load distribution
- pulleys can be integrated in the boom
Profile sizes
With the help of our wide range of large boom profiles, we can manufacture carbon booms up to 8 m in length. From sports boats to 50-foot yachts. The individual design of the wall thickness allows an optimal adaptation of the boom profile to the given requirements.
| Profile size | Dimensions | Groove | Weight | Ixx | Iyy | |
|---|---|---|---|---|---|---|
 |
44er Profil | Ø44 mm | without groove | 0,4 kg/m | 5,8 cm⁴ | 5,8 cm⁴ |
 |
46er Profil | Ø46 mm | without groove | 0,6 kg/m | 9,4 cm⁴ | 9,4 cm⁴ |
 |
65er Profil | Ø65 mm | without groove | 0,7 kg/m | 24 cm⁴ | 24 cm⁴ |
 |
99er Profil | 99 x 67 mm | without groove | 0,9 kg/m | 39 cm⁴ | 73 cm⁴ |
 |
101er Profil | 101 x 67 mm | without groove | 1,1 kg/m | 40 cm⁴ | 86 cm⁴ |
 |
104er Profil | 104 x 67 mm | with groove | 1,1 kg/m | 39 cm⁴ | 85 cm⁴ |
 |
106er Profil | 106 x 67 mm | with groove | 1,2 kg/m | 40 cm⁴ | 100 cm⁴ |
 |
117er Profil | 117 x 78 mm | without groove | 1,0 kg/m | 61 cm⁴ | 113 cm⁴ |
 |
117er Profil | 117 x 78 mm | with groove | 1,2 kg/m | 62 cm⁴ | 132 cm⁴ |
 |
118er Profil | 118 x 79 mm | without groove | 1,3 kg/m | 74 cm⁴ | 138 cm⁴ |
 |
118er Profil | 118 x 79 mm | with groove | 1,5 kg/m | 76 cm⁴ | 157 cm⁴ |
 |
139er Profil | 139 x 88 mm | without groove | 1,6 kg/m | 127 cm⁴ | 262 cm⁴ |
 |
140er Profil | 140 x 88 mm | with groove | 1,7 kg/m | 130 cm⁴ | 312 cm⁴ |
 |
141er Profil | 141 x 88 mm | without groove | 1,9 kg/m | 129 cm⁴ | 316 cm⁴ |
 |
142er Profil | 142 x 88 mm | with groove | 2,0 kg/m | 132 cm⁴ | 366 cm⁴ |
 |
163er Profil | 163 x 108 mm | without groove | 1,8 kg/m | 216 cm⁴ | 406 cm⁴ |
 |
167er Profil | 167 x 108 mm | without groove | 1,9 kg/m | 219 cm⁴ | 490 cm⁴ |
 |
168er Profil | 168 x 108 mm | with groove | 2,1 kg/m | 226 cm⁴ | 603 cm⁴ |
 |
170er Profil | 170 x 108 mm | with groove | 2,5 kg/m | 266 cm⁴ | 738 cm⁴ |
 |
195er Profil | 195 x 110 mm | without groove | 2,7 kg/m | 362 cm⁴ | 886 cm⁴ |
 |
197er Profil | 197 x 110 mm | without groove | 2,9 kg/m | 367 cm⁴ | 1007 cm⁴ |
 |
197er Profil | 197 x 110 mm | with groove | 3,0 kg/m | 370 cm⁴ | 1069 cm⁴ |
 |
199er Profil | 199 x 110 mm | with groove | 3,2 kg/m | 375 cm⁴ | 1220 cm⁴ |
 |
217er Profil | 217 x 113 mm | without groove | 3,0 kg/m | 414 cm⁴ | 1045 cm⁴ |
 |
218er Profil | 218 x 113 mm | with groove | 3,3 kg/m | 421 cm⁴ | 1354 cm⁴ |
 |
219er Profil | 219 x 115 mm | without groove | 3,8 kg/m | 528 cm⁴ | 1400 cm⁴ |
 |
220er Profil | 220 x 115 mm | with groove | 4,1 kg/m | 536 cm⁴ | 1684 cm⁴ |
